Tanks from 5 to 220 MVA
Transformer tanks, covers, base frames and heavy steel structures, manufactured in Bhopal to the customer’s drawing and approved quality plan, then blasted, painted and tested in our own works.
The steel body of every transformer
A transformer tank holds the core, the windings and the oil, and it has to stay tight for decades. We build that body with the precision your design demands.

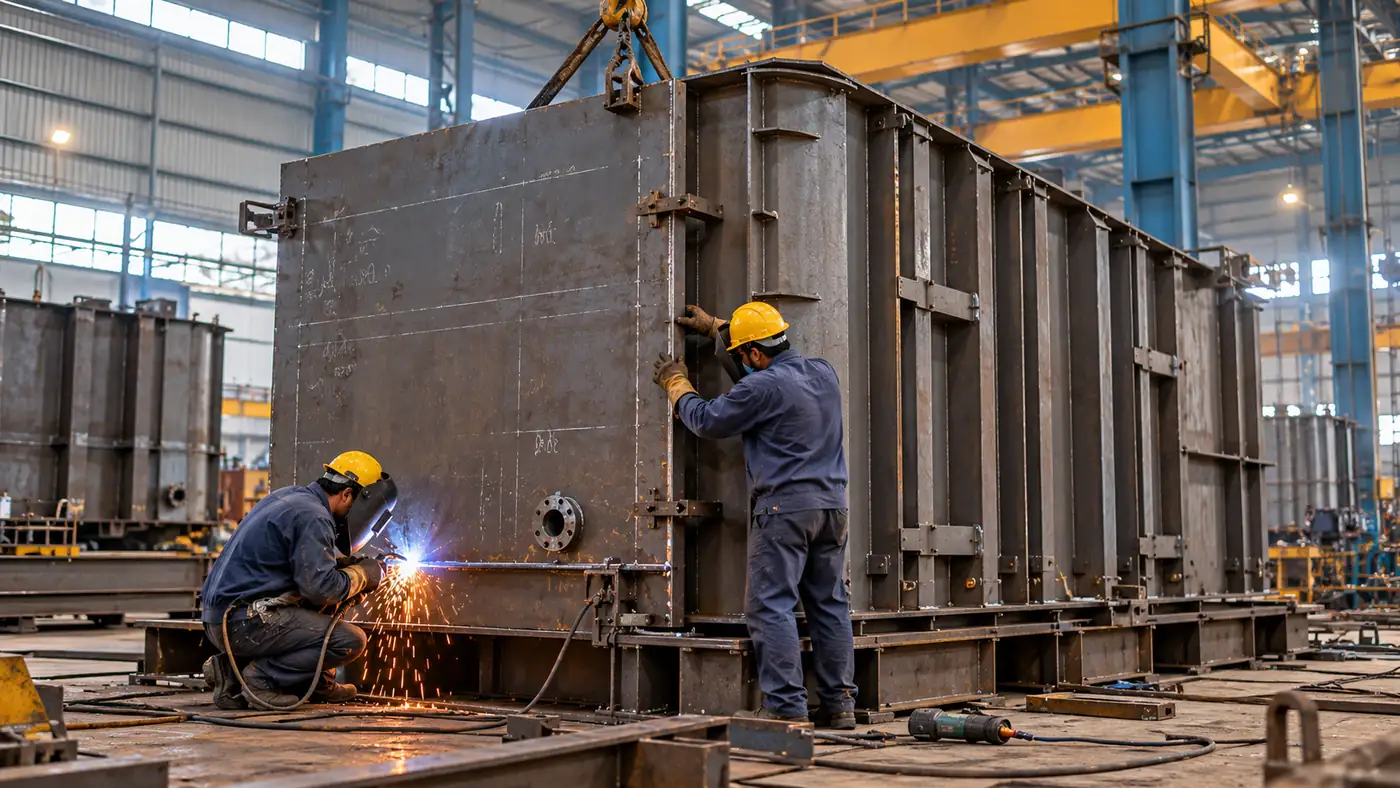

Transformer main tanks
Tank bodies for power transformers from 5 MVA to 220 MVA, fabricated from plate to the exact geometry on your drawing.
Plates profiled on CNC cutting machines
Stiffeners, lifting lugs and jacking pads welded to drawing
Tested in-house to the approved QAP after assembly
Covers, turrets and conservators
The parts that close and complete a tank: covers, bushing turrets and conservator vessels, delivered matched to the main tank.
Flanged openings and inspection covers to drawing
Conservator vessels with mounting structures
Fit-checked against the main tank before dispatch
mm, the longest base plate side we have fabricated
Base frames and base plates
Heavy base plates that carry the full weight of the transformer, cut and welded in-house.
Welded components
Fabricated assemblies, brackets, flanges and stiffened structures for transformer makers and heavy engineering.
TIG, pulse MIG, inverter and CO2 welding
Drilling up to 80 mm on the radial drill
Turning on 6, 7 and 9 ft lathes
Shot blasting and painting
Surface preparation and paint are done in our own enclosed booths, so the finish is controlled from blast to final coat.
Have a tank drawing ready?
Send it with your QAP and target delivery date. We will reply with a fabrication plan and a quote.
